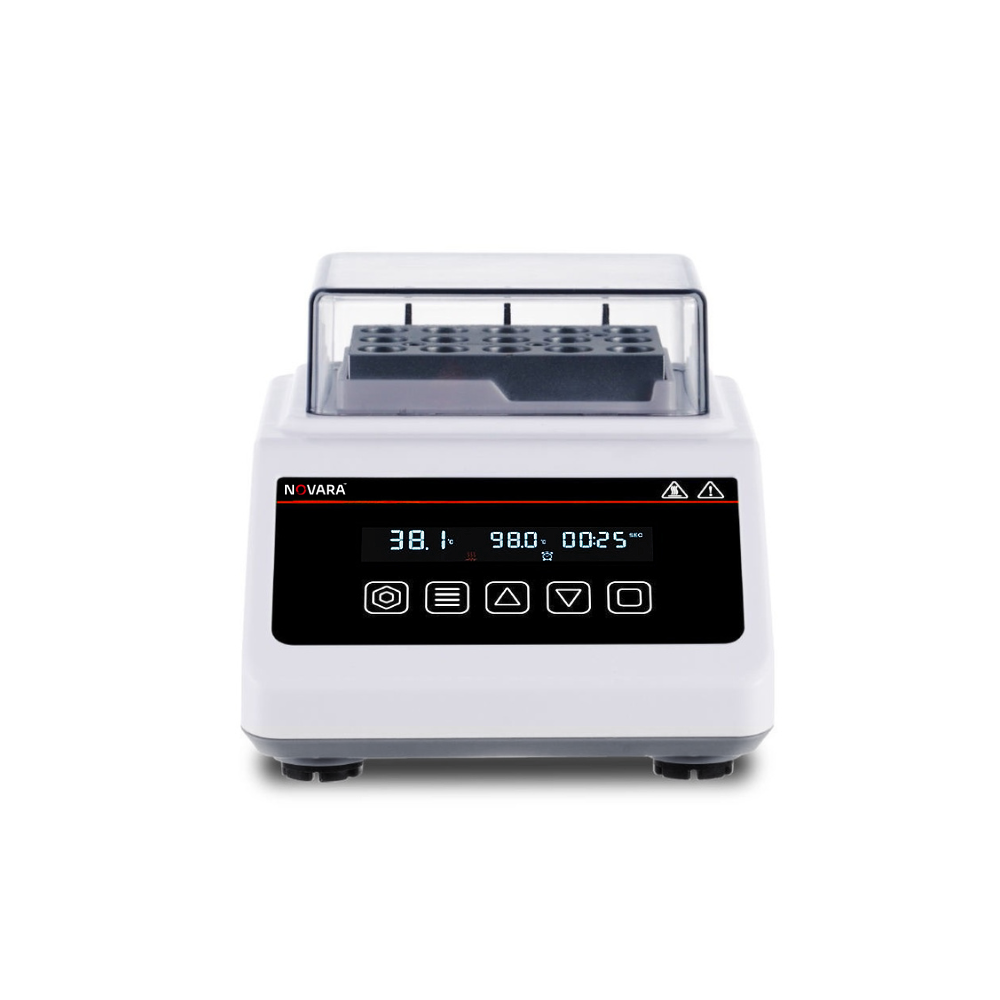

Novara™ Mini Digital Dry Bath - Programmable Lab Incubator

Designed for versatility and accuracy, the Novara™ Mini Digital Dry Bath is available in two configurations: a heating-only model for standard applications, or a heating and cooling model with advanced Peltier technology for applications requiring below-ambient temperatures.

Intelligent Multi-Program Operation Create and save up to 9 separate temperature programs, each with customizable temperature and time parameters. Perfect for complex protocols requiring multiple temperature stages, from enzyme reactions to DNA denaturation studies. Program your entire workflow once and run it repeatedly with consistent results.

Exceptional Temperature Precision With temperature control accuracy of ±0.5°C and temperature uniformity of ±0.3°C across the block, the Novara Mini Dry Bath ensures reproducible results across all your experiments. Set temperatures in precise 0.1°C increments with clear 0.1°C display resolution. The heating-only model operates from room temperature to 100°C with fast 15-20 minute ramp time, while the heating & cooling model expands your range from 15°C to 100°C with active Peltier cooling capabilities.

Choose Your Model Select the heating-only model for standard laboratory heating applications up to 100°C, ideal for PCR preparation, enzyme inactivation, and general sample warming. Or upgrade to the heating & cooling model for experiments requiring precise temperature control below room temperature (down to 15°C) with active Peltier cooling - perfect for temperature-sensitive reagents, protein studies, and applications requiring rapid temperature transitions.

User-Friendly LCD Touchscreen Interface The intuitive LCD touchscreen displays real-time temperature, set point, program number, and remaining time at a glance. Simple touch controls make programming and operation straightforward, even for complex multi-stage protocols. No complicated menus or confusing buttons - just touch and go.

Versatile Block Options for Any Tube Size

Choose from multiple interchangeable aluminum heating blocks to accommodate various tube sizes and maximize your sample throughput:

• 2ml × 15 tubes (standard block included with purchase)
• 1.5ml × 15 tubes (optional, sold separately)
• 0.5ml × 24 tubes (optional, sold separately)
• 0.2ml × 40 tubes (optional, sold separately)

Each precision-machined block ensures excellent thermal contact and uniform heat distribution. Simply swap blocks in seconds to adapt to different tube formats without any tools required.

Compact Design - Maximum Functionality in Minimal Space

• Ultra-compact footprint - Just 5.5" wide × 4" deep × 3.5" tall, fits even the most crowded benchtops without sacrificing workspace
• Lightweight portability - Only 2.5 lbs, easily move between workstations or store when not in use
• Transparent insulation cover - Monitor your samples without opening the lid and losing temperature stability
• Heat-resistant aluminum blocks - Maintain integrity at high temperatures without warping or deformation
• Efficient heat dissipation vents - Prevent overheating and extend service life with intelligent thermal management
• Sleek, professional appearance - Modern white and blue design complements any laboratory setting
• Non-slip rubber feet - Keeps unit stable during operation

Complete Package Ready to Use Each unit includes everything you need to get started: the main instrument, one 2ml × 15-tube heating block (standard), power adapter (110V AC), and comprehensive instruction manual. Just unpack, plug in, and start running your protocols.

Technical Specifications

Heating Only Model (48W)

• SKU: MDB100-H
• Voltage: 110V AC, 60Hz (US standard)
• Power Consumption: 48W
• Temperature Range: RT+5°C to 100°C (heating only, cools naturally to ambient)
• Temperature Accuracy: ±0.5°C
• Temperature Uniformity: ±0.3°C across block
• Temperature Increments: 0.1°C
• Display Accuracy: 0.1°C
• Ramp Time (20°C to 100°C): Approximately 15-20 minutes
• Heating Method: Heating film technology
• Cooling Method: Natural convection (passive cooling to ambient temperature)
• Net Weight: 2.5 lbs
• Best For: Standard heating applications, enzyme reactions, PCR prep, sample warming

Heating & Cooling Model (60W)

• SKU: MDB100-HC
• Voltage: 110V AC, 60Hz (US standard)
• Power Consumption: 60W
• Temperature Range: 15°C to 100°C (active heating and cooling)
• Temperature Accuracy: ±0.5°C
• Temperature Uniformity: ±0.3°C across block
• Temperature Increments: 0.1°C
• Display Accuracy: 0.1°C
• Ramp Time (20°C to 100°C): Approximately 12-15 minutes
• Ramp Time (20°C to 0°C): Approximately 25-30 minutes
• Heating Method: Peltier semiconductor technology
• Cooling Method: Peltier active cooling
• Net Weight: 2.5 lbs
• Best For: Applications requiring below-ambient cooling, temperature-sensitive protocols, rapid temperature changes

Common Specifications (Both Models)

• Time Setting Range: 0 to 23 hours 59 minutes
• Display Type: LCD touchscreen with backlight
• Programming Capacity: Up to 9 independent temperature programs
• Unit Dimensions: 5.5" W × 4" D × 3.5" H (ultra-compact design)
• Standard Block Included: 2ml × 15 tubes (aluminum construction)
• Optional Blocks Available: 1.5ml×15, 0.5ml×24, 0.2ml×40 tubes
• Safety Features: Over-temperature protection, automatic shut-off
• Operating Environment: 10°C to 40°C ambient temperature

Model Comparison Table

Both models include: Up to 9 programmable settings • LCD touchscreen • 2ml×15 tube block • 5.5"×4"×3.5" compact size

Applications

The Novara™ Mini Dry Bath is ideal for a wide range of laboratory applications across molecular biology, biochemistry, microbiology, and clinical diagnostics:

Molecular Biology:

• PCR sample preparation and pre-heating
• DNA/RNA denaturation and annealing
• Restriction enzyme digestion
• Ligation reactions
• Nucleic acid precipitation
• Oligonucleotide resuspension

Protein & Enzyme Work:

• Enzyme reactions and kinetic studies
• Heat inactivation of enzymes
• Protein denaturation studies
• Bradford and other protein assays
• Antibody incubations
• Western blot blocking

Microbiology & Cell Culture:

• Bacterial culture growth and induction
• Agar warming
• Media preparation
• Cell lysis protocols
• Competent cell preparation

Clinical & Diagnostic Applications:

• ELISA incubations
• Immunoassay procedures
• Blood sample processing
• Serology tests
• Quality control samples

General Laboratory Use:

• Reagent warming
• Maintaining samples at specific temperatures
• Melting agarose
• Dissolving compounds
• Sample storage during procedures

Why Choose Novara™?

Precision You Can Trust The Novara™ Mini Dry Bath delivers laboratory-grade temperature control with ±0.5°C accuracy and ±0.3°C uniformity. Whether you're running sensitive enzyme reactions or preparing PCR samples, you can count on consistent, reproducible results every time.

Compact Design, Big Performance Don't let the small size fool you - this powerhouse packs professional features into an ultra-compact 5.5" × 4" footprint. Perfect for crowded benchtops, small labs, or multi-user facilities where space is at a premium.

Flexibility for Every Workflow With up to 9 programmable temperature settings and interchangeable blocks for 15-40 tubes, the Novara adapts to your needs. Run the same protocol repeatedly or switch between different applications throughout the day.

Built to Last Constructed with durable materials and featuring efficient heat dissipation, the Novara Mini Dry Bath is engineered for years of reliable daily use in demanding laboratory environments.

Choose the Right Model for Your Needs Need basic heating? The MDB100-H delivers reliable performance for routine applications. Need cooling capabilities? The MDB100-HC with Peltier technology handles both heating and cooling for temperature-sensitive work.

Value Without Compromise Get professional-grade temperature control without the premium price tag. The Novara™ Mini Dry Bath delivers the features and performance you need at a price that fits your budget.

What's Included

Each Novara™ Mini Dry Bath package contains:

• 1× Mini Dry Bath main unit (model selected)
• 1× Aluminum heating block for 2ml × 15 tubes (standard)
• 1× Power adapter (110V AC)
• 1× Comprehensive instruction manual
• 1× Quick start guide

Optional accessories available separately:

• 1.5ml × 15-tube heating block
• 0.5ml × 24-tube heating block
• 0.2ml × 40-tube heating block
