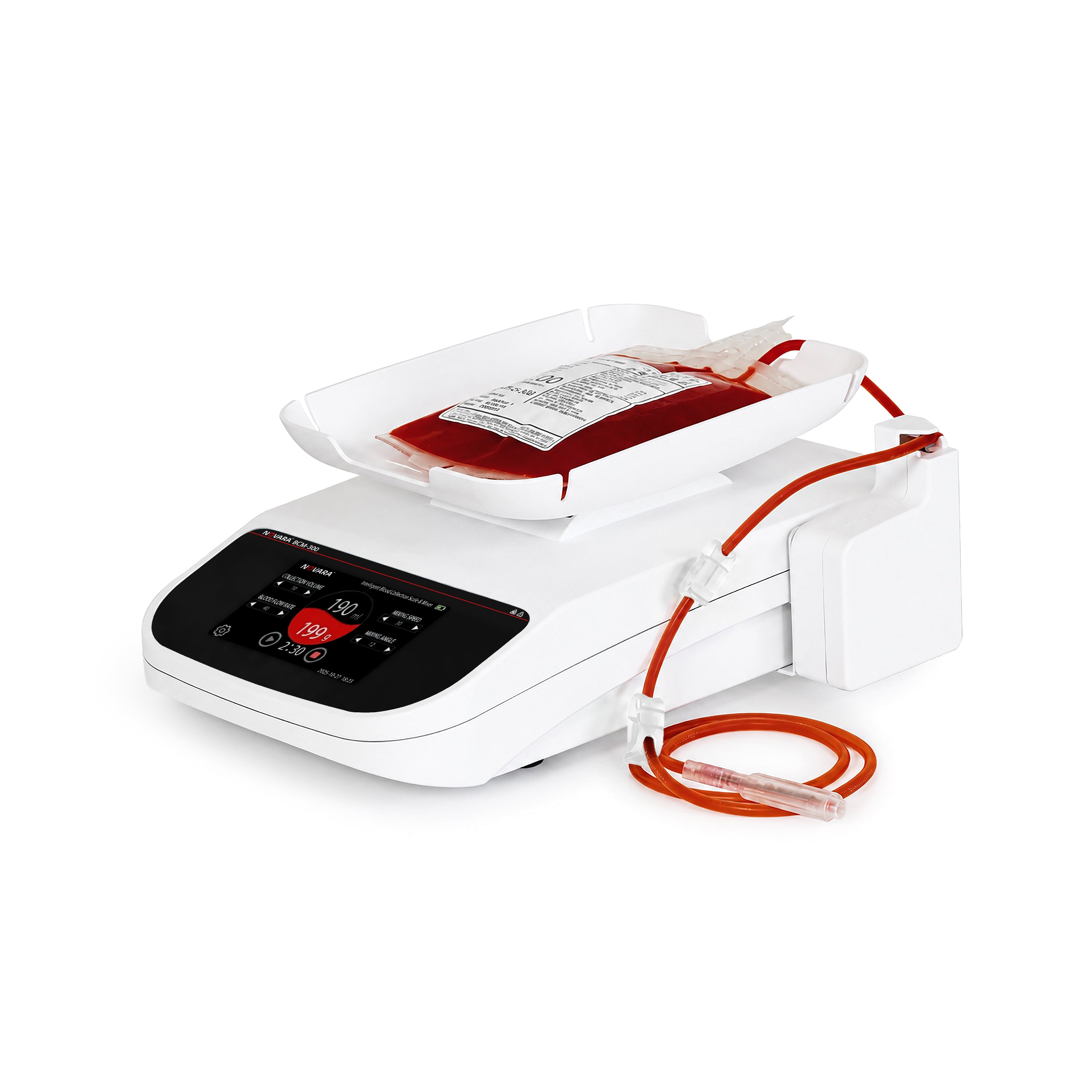

Novara™ BCM-300 SmartMix Intelligent Blood Collection Mixer
-
Estimated Delivery:Jun 16 - Jun 20
-
FREE Shipping & Returns
The BCM-300 SmartMix brings next-generation intelligence to automated blood collection and fluid mixing — delivering the precision tracking and safety features of enterprise clinical systems at a fraction of the cost. Designed for stationary blood centers, mobile donation drives, and private biotech research facilities, this system gives your team total bedside freedom across full 8+ hour shifts on a single charge.
Built for all-day, anywhere operation
The BCM-300 SmartMix is engineered to keep up with your team wherever collections happen. A vivid 4.3" color touchscreen with glove-compatible sensitivity gives operators a clear, responsive interface at the bedside — no removing gloves, no fumbling between steps. Powering it all is a high-capacity 12,000 mAh lithium battery that delivers 8+ hours of continuous runtime on a single charge, so your team can move freely between stations, collection rooms, or mobile drive locations without hunting for an outlet. Whether you're running a full day at a stationary center or a packed mobile donation event, the BCM-300 keeps your workflow moving from first draw to last.
Engineered for absolute sample integrity
The BCM-300 SmartMix goes beyond basic shaker scales with intelligent sensor algorithms that eliminate workflow errors at the point of collection. If a blood bag is bumped, shifted, or prematurely removed from the tray, the system immediately halts rocking motion and locks all session data — preventing unmonitored line overflows and protecting sample integrity without staff intervention. Operators can seamlessly transition between whole blood collections (default 1.05 g/mL) and specialized component extractions by manually inputting custom specific gravity targets for plasma, platelets, or cell-culture media. Dedicated one-touch quick-select keys for standard 200 g, 300 g, and 400 g collection profiles maximize throughput at the bedside, while integrated pilot-tube sampling parameters are programmed directly into the cycle — automatically accounting for testing offset volumes with no manual calculations required.
Network-free compliance logging, built in
The BCM-300 SmartMix automatically logs up to 1,000 individual collection records — including final draw volumes, flow dynamics, elapsed collection times, and event logs. Export clean .txt files via standard USB flash drive and import directly into your spreadsheets or quality management documentation. No network connection, IT infrastructure, or enterprise software license required.
| Specification | BCM-300 |
|---|---|
| Control Interface | 4.3" color touchscreen (glove-compatible) |
| Collection Range | 10 mL – 1,000 mL |
| Weighing Resolution | 1 mL / 1 g |
| Volume Precision | ±1.0 g (±1.0 mL) |
| Flow Rate Monitoring | Real-time, 0–100 mL/min |
| Rocking Speed | 10–40 RPM (variable electronic control) |
| Rocking Angle Range | 5°–15° |
| Liquid Specific Gravity | Programmable (default whole blood: 1.05 g/mL) |
| Quick-Select Profiles | One-touch presets — 200g / 300g / 400g |
| Pilot-Tube Compensation | Integrated custom volume offset menus |
| Auto-Blocker Tubing Size | Ø3 mm – Ø6 mm standard medical tubing (0.5mm wall) |
| Auto-Blocker Clamping Force | >15 N (heavy-duty electromagnetic actuator) |
| Safety Sensor Logic | Mid-collection bag displacement auto-pause — instant freeze/lock |
| System Alerts | Flow anomaly, timeout, completion, auto-blocker lock |
| Battery | 12,000 mAh lithium-ion — 8+ hrs continuous operation |
| Power Requirements | DC 24V input, 25W (with blocker engaged) |
| Data Storage | Up to 1,000 donation log entries |
| Data Logging | Collection time, final volume, avg flow rate, event alerts |
| Data Export | USB-A port — exports .txt spreadsheet-ready logs |
| Barcode Scanner | RS232 / USB compatible (donor bag serialization) |
| Operating Environment | 41°F–122°F (5°C–50°C), ≤80% RH |
| IP Rating | IP43 (spill-resistant chassis) |
| Chassis Material | High-impact medical ABS, scratch-resistant matte finish |
| Dimensions (L × W × H) | 11.8" × 7.5" × 4.7" (blocker assembly excluded) |
| Weight | 3.74 lbs (includes battery; blocker module adds 0.4 lbs) |
