Novara™ Multi-Tube Vortex Mixer XL | High-Capacity

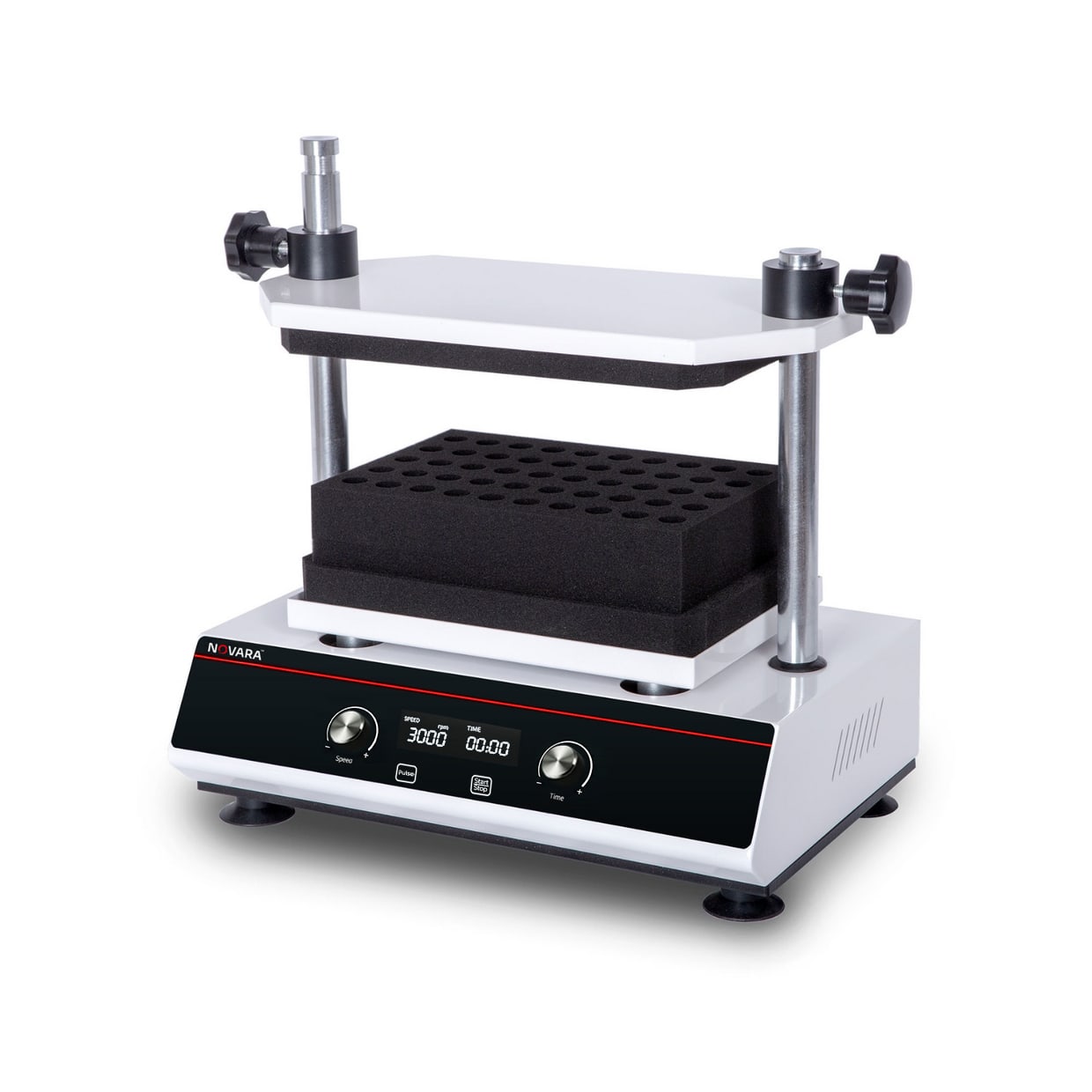

The Novara™ Multi-Tube Vortex Mixer (Model MTV-50) represents the pinnacle of laboratory mixing technology, designed specifically for demanding applications in biotechnology, microbiology, and medical analysis. This advanced vortex mixer combines precision engineering with user-friendly operation to deliver consistent, reliable results across a wide range of sample types and volumes.

Featuring a powerful brushless DC motor, the MTV-50 operates smoothly across a wide speed range of 500-3000 RPM with exceptional accuracy of ±10 RPM. The 4mm horizontal rotation amplitude ensures thorough mixing while the stable platform design minimizes vibration and noise, creating a more comfortable laboratory environment.

The intuitive LCD control panel provides clear, real-time display of both speed and timing parameters, while dual adjustment knobs allow for precise control. Advanced timing functions support both continuous operation and programmable cycles from 1 minute to 99 hours and 59 minutes, with convenient inching and pulse modes for specialized applications.

With a robust construction supporting loads up to 4.5kg and an adjustable top cover lift range of 30cm, the MTV-50 accommodates a diverse array of sample containers. The included set of six interchangeable sponge tube racks provides versatility for tube sizes ranging from 8mm to 32mm diameter, making this mixer suitable for everything from microcentrifuge tubes to larger sample vessels.

Key Features:

• Stable Operation: Brushless DC motor ensures consistent, vibration-free performance
• Variable Speed Control: 500-3000 RPM range with ±10 RPM accuracy
• Low Noise: Quiet operation for comfortable laboratory environment
• LCD Display: Clear reading of speed and timing information
• Easy to Operate: Intuitive control panel with simple adjustment knobs
• High Efficiency: 4mm horizontal rotation amplitude for thorough mixing

Technical Specifications:

• Model: MTV-50
• Voltage: AC 100-240V
• Frequency: 50/60Hz
• Power: 70W
• Speed Range: 500-3000 RPM
• Speed Accuracy: ±10 RPM
• Amplitude: 4mm horizontal rotation
• Motor Type: Brushless DC motor
• Operation Modes: Inching, timing
• Timing Range: 1min-99h59min
• Pulse Interval: 10s
• Maximum Load: 4.5kg
• Top Cover Lift: 30cm
• Net Weight: 17kg
• Dimensions: 410×375×430mm

Included Tube Racks:

• Φ10×50 rack (fits Φ8-11mm tubes)
• Φ12×50 rack (fits Φ12-14mm tubes)
• Φ15×50 rack (fits Φ14-17mm tubes)
• Φ20×50 rack (fits Φ18-23mm tubes)
• Φ25×15 rack (fits Φ24-27mm tubes)
• Φ29×15 rack (fits Φ28-32mm tubes)

Ideal Applications:

Sample preparation • Cell culture • DNA/RNA extraction • Protein mixing • Biotechnology research • Microbiological studies • Medical diagnostic processing
