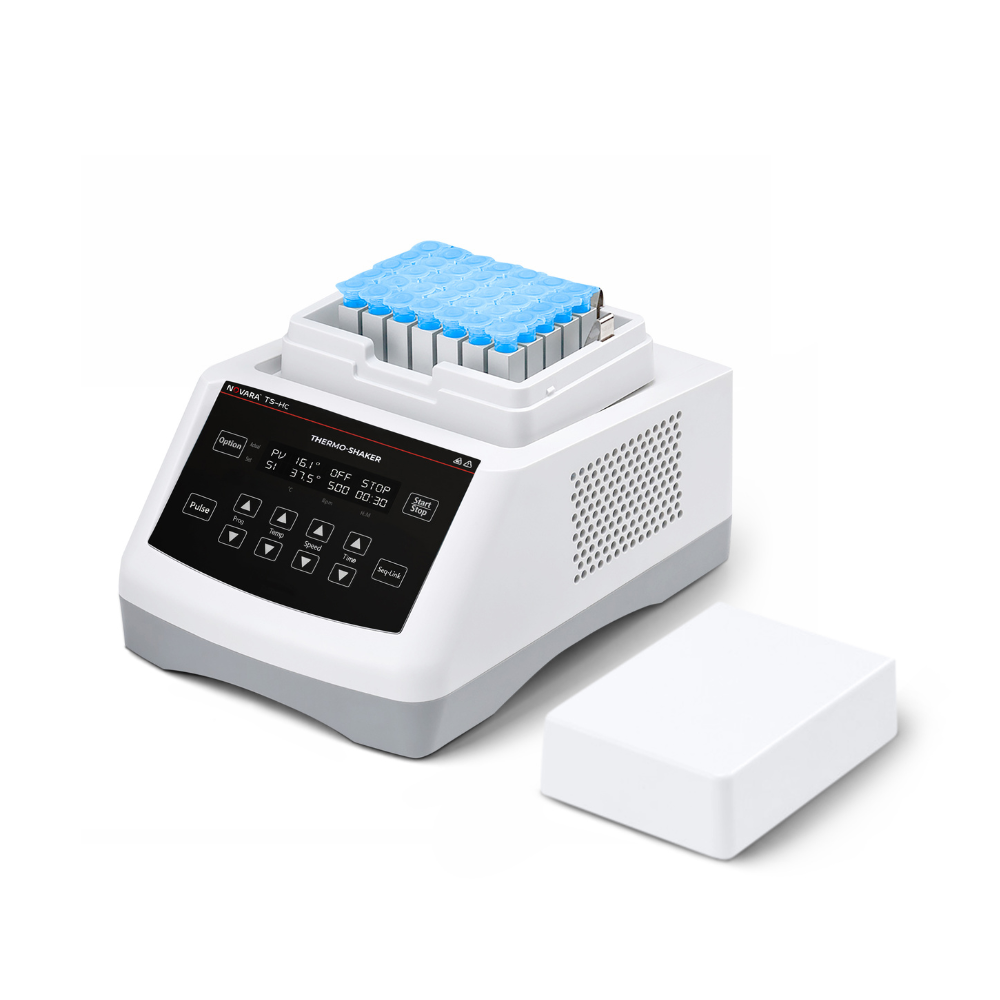

Novara™ Thermo-Shaker Mixer | Interchangeable Block Included
-
Estimated Delivery:Jun 05 - Jun 09
-
FREE Shipping & Returns
The Novara™ Thermo-Shaker delivers precise temperature control and consistent orbital shaking in a single compact benchtop unit — purpose-built for molecular biology workflows where sample integrity matters. Also known as a thermomixer, temperature-controlled shaker, heated tube shaker, benchtop shaker incubator or incubating mixer, it handles everything from routine incubation to temperature-sensitive mixing with ease.
Choose your configuration: the TS-H for heating-only applications, or the TS-HC for full heating and active cooling down to RT−20°C. Each unit ships with your choice of interchangeable block — compatible with microcentrifuge tubes, PCR plates, 15/50 mL conical tubes and more. Additional block types available upon request.
Features:
- PID intelligent temperature control with ≤±0.3°C accuracy
- LCD display showing live and set values for temperature, speed and time simultaneously
- Brushless DC motor — quiet, maintenance-free, long service life
- Quick-swap interchangeable block system for a wide range of tube formats
- Built-in over-temperature protection for safe, unattended runs
- Multi-point programming with up to 5 steps and 99 cycle repeats
- Auto resume after power interruption
- Storage mode at 4°C
- CE certified
| Specification | TS-HC (Heating & Cooling) | TS-H (Heating Only) |
|---|---|---|
| Temp Control Range | RT−20°C to 100°C | RT+5°C to 100°C |
| Temp Setting Range | 0°C – 100°C | |
| Speed Range | 200–1,500 RPM | 200–1,800 RPM |
| Input Voltage | AC 100–240V, 50/60Hz (US Standard) | AC 110V, 50/60Hz (US Standard) |
| Weight | 18.7 lbs | 16.5 lbs |
| Heating Time (25°C → 100°C) | ≤12 minutes | |
| Cooling Time (100°C → 25°C) | ≤10 minutes | N/A |
| Cooling Time (RT → RT−20°C) | ≤15 minutes | N/A |
| Temp Accuracy | ≤±0.3°C | |
| Temp Uniformity | ≤±0.3°C | |
| Display Accuracy | 0.1°C | |
| Orbital Diameter | 3mm | |
| Timer Range | 1 min – 99 hrs 59 min / continuous | |
| Multi-Point Programming | Up to 5 steps | |
| Cycle Repeats | Up to 99 times | |
| Motor Type | DC Brushless motor | |
| Display | LCD — live & set temp, speed & time | |
| Storage Mode | 4°C | |
| Auto Resume | Yes — resumes after power interruption | |
| Safety Features | Over-temperature protection | |
| Power | 150W | |
| Fuse | 250V 3A (Ø5×20mm) | |
| Dimensions (L × W × H) | 10.2" × 7.7" × 5.9" | |
| Certifications | CE | |
| Compatible Block Options (Interchangeable) | ||
| Universal Microtube Block | 35 × 1.5 mL centrifuge tubes | |
| PCR Plate & Strip Block | 96 × 0.2 mL PCR plate | |
| 15mL Conical Tube Block | 12 × 15 mL centrifuge tubes (max 800 RPM) | |
| 50mL Conical Tube Block | 6 × 50 mL conical-bottom centrifuge tubes (max 800 RPM) | |
| ELISA Microplate Block | 96 × 0.2 mL ELISA plate | |
